Diagnostics

"Tenant" → "System" → "Diagnostics"

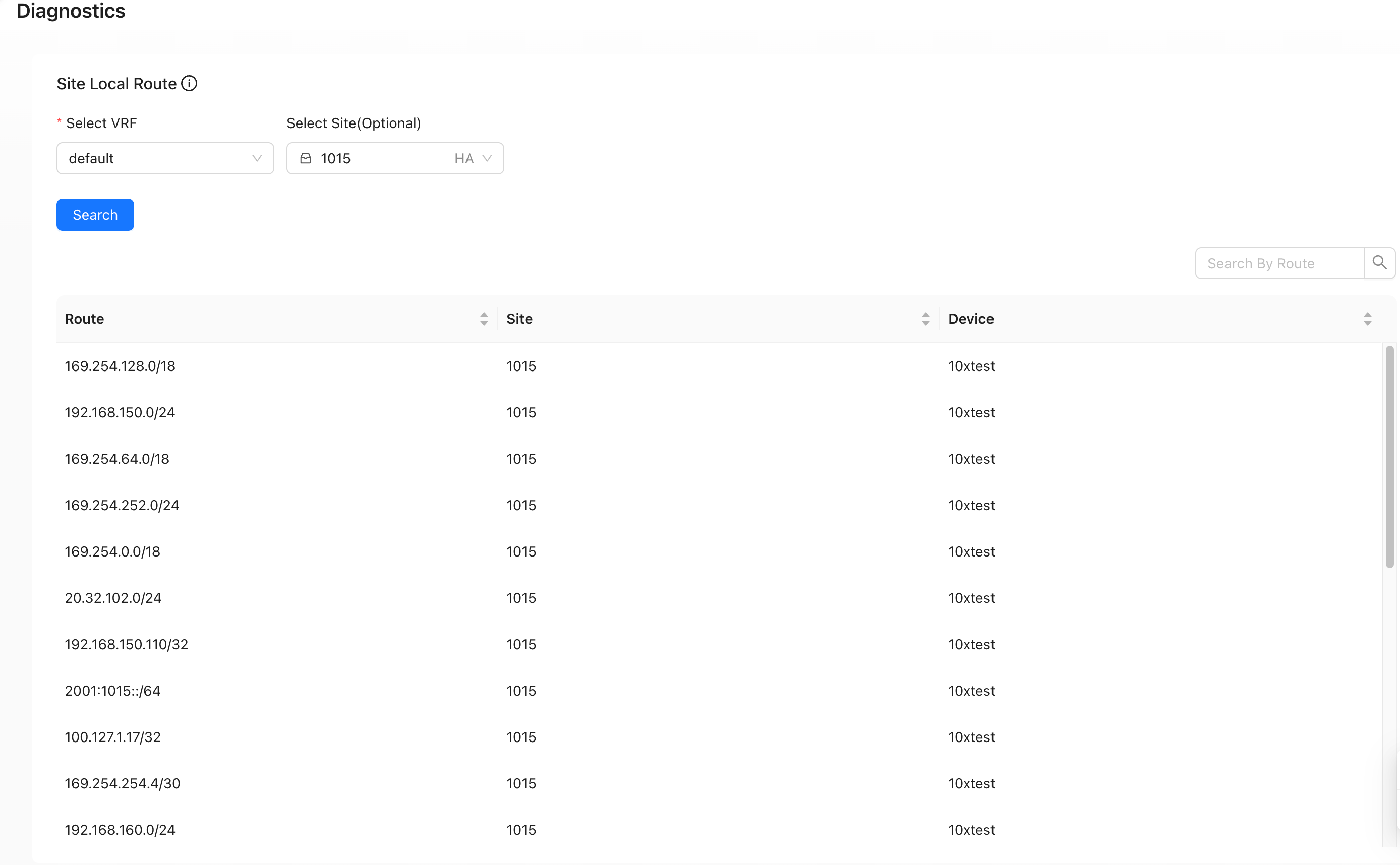

Site Local Routing​

Administrators can view the VRF routing and device SN corresponding to the site configured by the tenant, and diagnose whether the VRF is normal based on the routing information. DIAGNOSTICS_SITE ROUTING

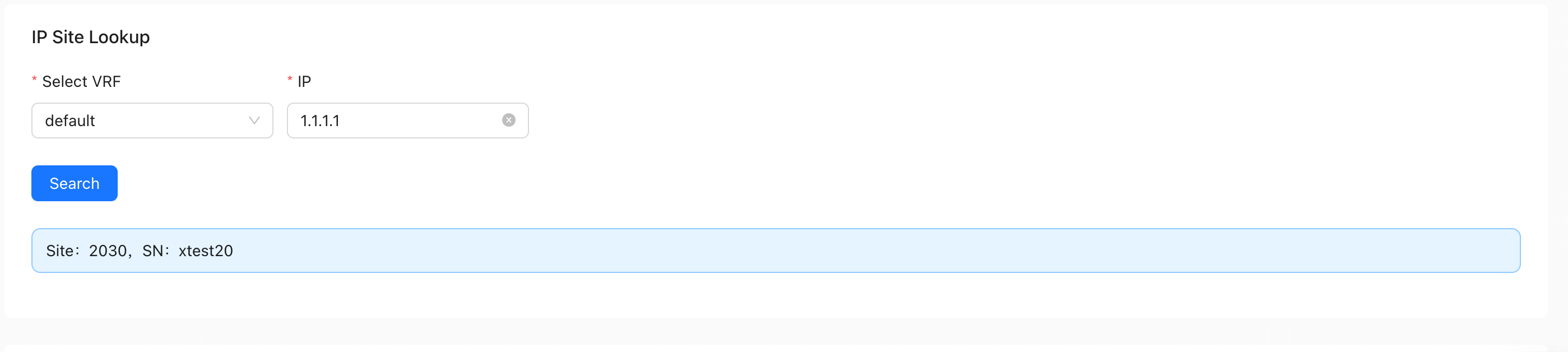

Site of an IP​

Administrators can query the site and device SN based on the LAN side IP configured by the tenant. Diagnosis_IP site

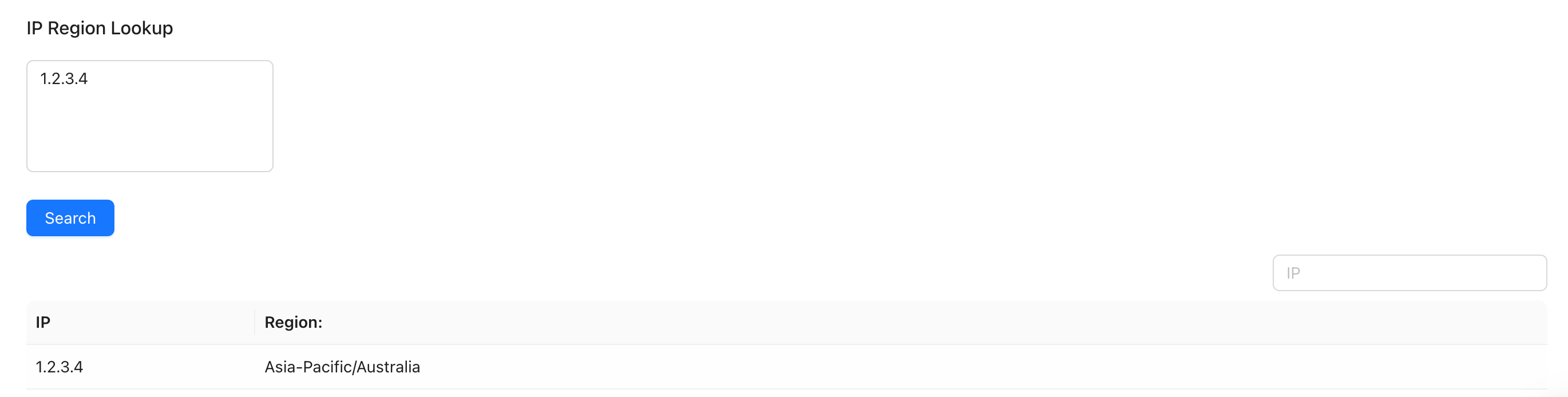

Region of an IP​

You can query the continent/country information to which an IP belongs.

The query results can be used to configure the national and regional address database.

Query IP region

Query the IP region

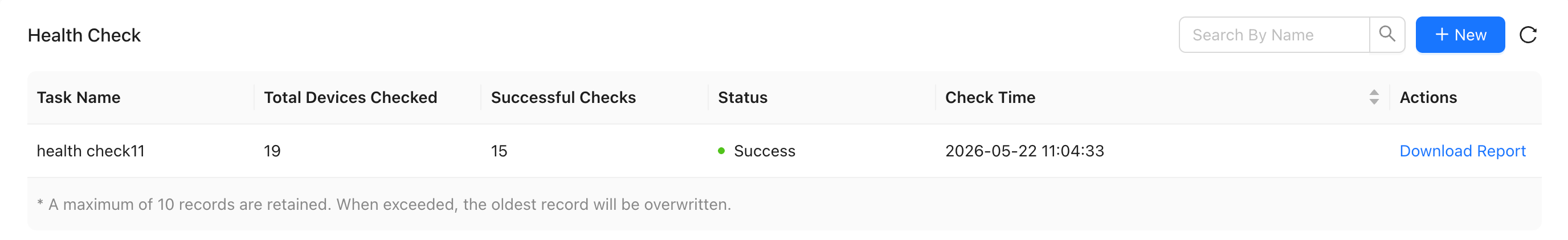

Inspection​

Administrators can create inspection tasks and download inspection reports. Diagnosis_Inspection

info

Tasks contain details about:

  • Basic hardware version information
  • Resource running status
  • Number of device connections
  • Port statistics
  • Tunnel status
  • Security instance status

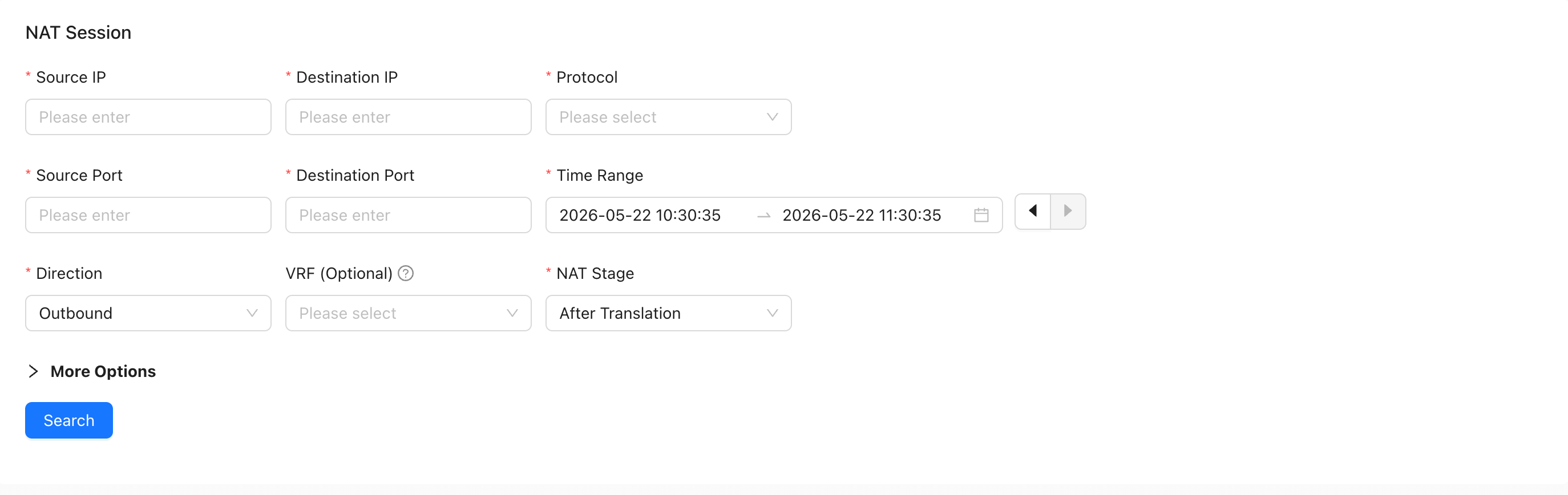

NAT Session Query​

info

Required parameters:

  • Source IP
  • Destination IP
  • Protocol
  • Source port
  • Destination port
  • Time range
  • Direction
  • Conversion type

DIAGNOSIS_NAT

tip

The query time range cannot exceed 1 hour

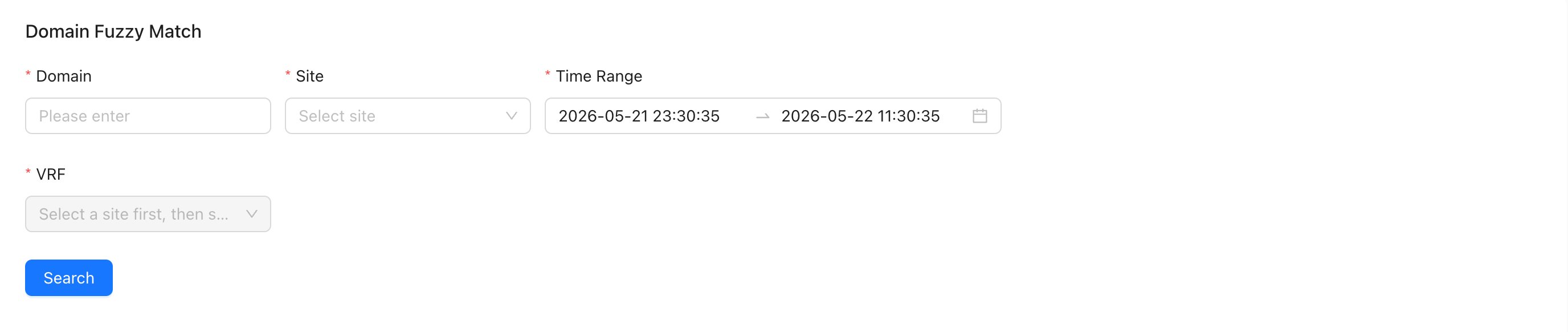

Domain Name Fuzzy Query​

Based on the domain name, you can query the correspondence between the domain names and IPs visited by traffic within a certain time range of the site. Domain name fuzzy matching

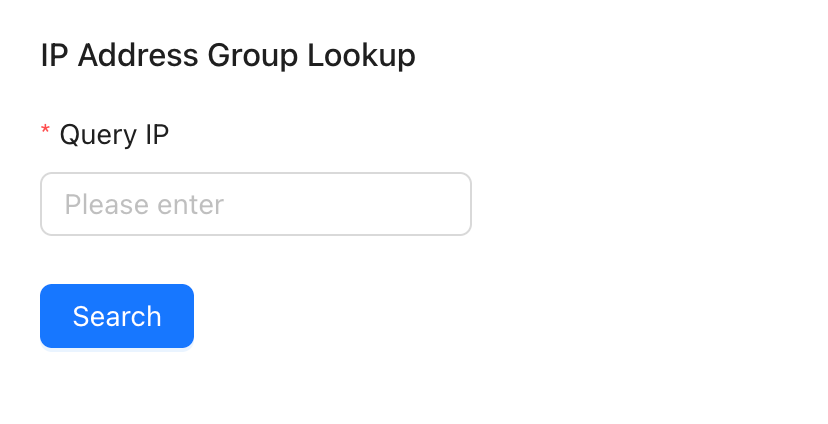

Address Group of an IP​

info

This feature is supported in Earth 3.2 and above

Function description:

  • This query box will be displayed on the page only if the tenant has the "IP_SECURITY_GROUP_R" permission.
  • Supports querying the Address Group / VRF to which an IPv4 / IPv6 address belongs.
  • Supports querying addresses that are equal to or contained in a prefix. If the address is in a different VRF, it is still displayed normally.
