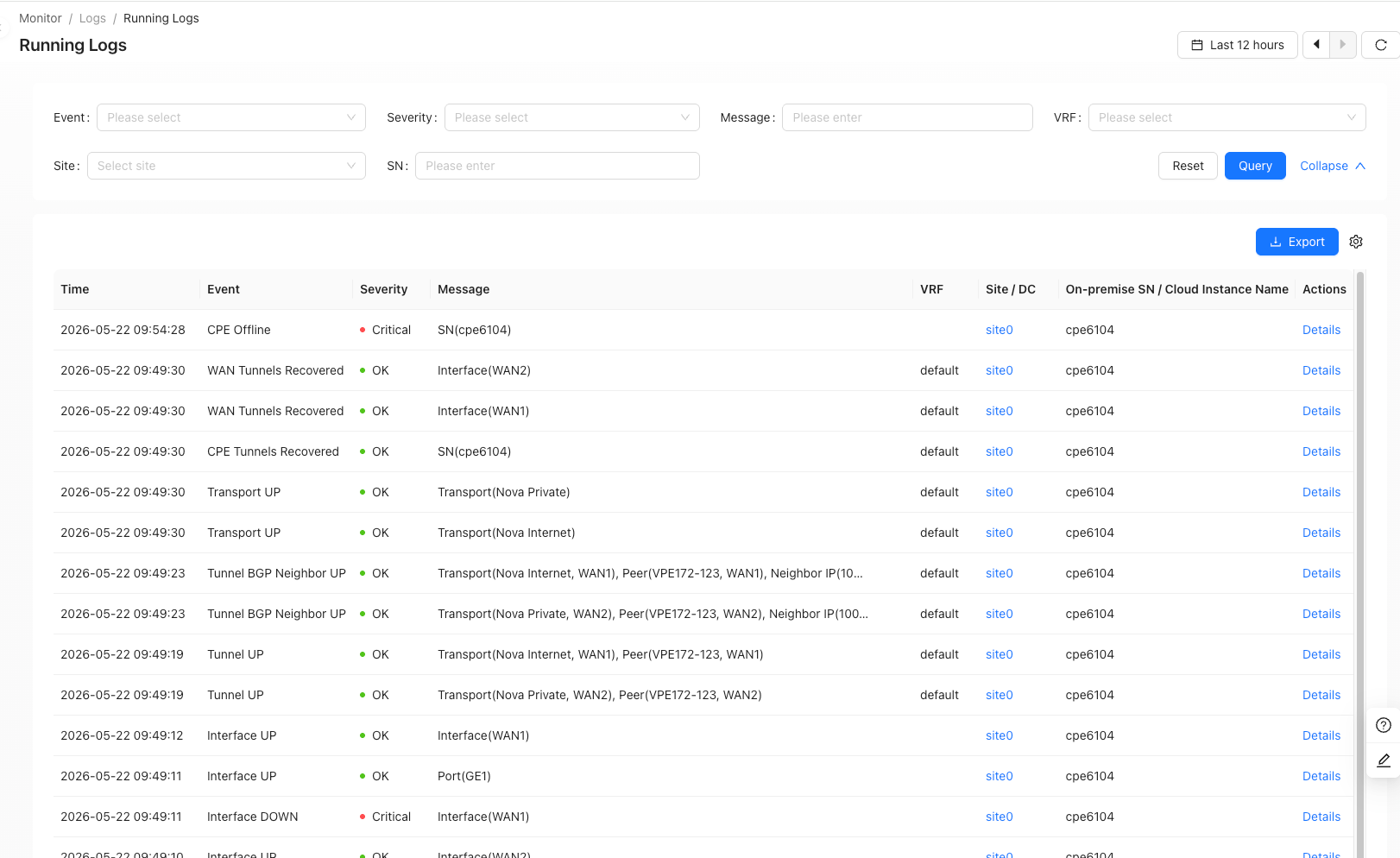

Running Logs

"Tenant"→"Monitor"→"Logs"→"Running Logs"

• Search by message, SN or site name
• Filter by event (multiple selection)
• Customizable time range
• Exportable logs

Run log type

Event name	Event description
CPE Online	The CPE has connected to the controller.
CPE Offline	The CPE has disconnected from the controller.
Interface UP	The interface status changed to UP.
Interface DOWN	The interface status changed to DOWN.
Transport UP	The transport network has recovered.
Transport DOWN	The transport network is unavailable.
Interface Track Recovered	Interface detection has recovered.
Interface Track Error	Interface detection is abnormal.
Static Route Detective Recovered	Static route detection has recovered.
Static Route Detective Error	Static route detection is abnormal.
WAN Connectivity Recovered	WAN connectivity has recovered.
WAN Connectivity Error	WAN connectivity is abnormal.
CPE Monitor Upload Exception	CPE monitoring data upload is abnormal.
WAN Bandwidth Recovered	WAN bandwidth usage has returned below the threshold.
WAN Bandwidth Congestion	WAN bandwidth usage exceeds the threshold.
CPE Upgrade Success	The CPE upgrade succeeded.
CPE Upgrade Failed	The CPE upgrade failed.
CPE Agent UP	The CPE agent is running.
CPE Agent DOWN	The CPE agent is unavailable.
CPE System Restart	The CPE system restarted.
CPE BGPD FD Recovered	CPE BGPD file descriptor usage has recovered.
CPE BGPD FD Exceeded Threshold	CPE BGPD file descriptor usage exceeded the threshold.
Tunnel UP	The tunnel status changed to UP.
Tunnel DOWN	The tunnel status changed to DOWN.
CPE Tunnels Recovered	CPE tunnels have recovered.
CPE Tunnels Unavailable	CPE tunnels are unavailable.
WAN Tunnels Recovered	WAN tunnels have recovered.
WAN Tunnels Unavailable	WAN tunnels are unavailable.
The WAN link has recovered in a specific VRF	The WAN link has recovered in at least one VRF.
The WAN link is unavailable in all VRFs	The WAN link is unavailable in all VRFs.
Tunnel BGP Neighbor UP	The tunnel BGP neighbor status changed to UP.
Tunnel BGP Neighbor DOWN	The tunnel BGP neighbor status changed to DOWN.
LAN BGP Neighbor UP	The LAN-side BGP neighbor status changed to UP.
LAN BGP Neighbor DOWN	The LAN-side BGP neighbor status changed to DOWN.
LAN OSPF UP	The LAN-side OSPF instance status changed to UP.
LAN OSPF DOWN	The LAN-side OSPF instance status changed to DOWN.
NNI BGP Neighbor UP	The NNI BGP neighbor status changed to UP.
NNI BGP Neighbor DOWN	The NNI BGP neighbor status changed to DOWN.
Tunnel Bandwidth Recovered	Tunnel bandwidth usage has returned below the threshold.
Tunnel Bandwidth Congestion	Tunnel bandwidth usage exceeds the threshold.
Tunnel QoS Bandwidth Recovered	Tunnel QoS class bandwidth usage has recovered.
Tunnel QoS Bandwidth Congestion	Tunnel QoS class bandwidth usage is congested.
CPE Config Recovered	CPE configuration delivery has recovered.
CPE Config Failed	CPE configuration delivery failed.
System Time Sync Success	System time synchronization succeeded.
System Time Sync Failed	System time synchronization failed.
System Time Bias Recovered	System time bias has recovered.
System Time Bias Failed	System time bias calibration failed.
HA Brain Split Recovered	HA split-brain status has recovered.
HA Brain Split Occurrence	HA split-brain occurred.
CPE Power Recovered	CPE power status has recovered.
CPE Power Abnormal	CPE power status is abnormal.
HA Role Changed	The HA role changed.
CPE Registered	The CPE was registered successfully.
Config Rollback	Configuration rollback occurred.
Security Instance Signature Upgrade Success	Security instance signature upgrade succeeded.
Security Instance Signature Upgrade Failure	Security instance signature upgrade failed.
SWG License Expire Warning	The SWG license is about to expire.
SWG License Status Recovered	The SWG license status has recovered.
SWG License Status Abnormal	The SWG license status is abnormal.
Nova Gateway Online	The Nova gateway has connected to the controller.
Nova Gateway Offline	The Nova gateway has disconnected from the controller.
Nova Gateway Interface UP	The Nova gateway interface status changed to UP.
Nova Gateway Interface DOWN	The Nova gateway interface status changed to DOWN.
Nova Gateway BGP Neighbor UP	The Nova gateway BGP neighbor status changed to UP.
Nova Gateway BGP Neighbor DOWN	The Nova gateway BGP neighbor status changed to DOWN.
The BGP neighbor on the Nova gateway's WAN interface is UP	The BGP neighbor on the Nova gateway WAN interface is UP.
The BGP neighbor on the Nova gateway's WAN interface is DOWN	The BGP neighbor on the Nova gateway WAN interface is DOWN.
Nova Gateway BGPD FD Recovered	Nova gateway BGPD file descriptor usage has recovered.
Nova Gateway BGPD FD Exceeded Threshold	Nova gateway BGPD file descriptor usage exceeded the threshold.
Nova Gateway Registered	The Nova gateway was registered successfully.
Nova Gateway Upgrade Success	The Nova gateway upgrade succeeded.
Nova Gateway Upgrade Failed	The Nova gateway upgrade failed.
Nova Gateway Agent UP	The Nova gateway agent is running.
Nova Gateway Agent DOWN	The Nova gateway agent is unavailable.
Nova Gateway System Restart	The Nova gateway system restarted.
IPSEC Tunnel UP	The IPSEC tunnel has recovered.
IPSEC Tunnel DOWN	The IPSEC tunnel is unavailable.
IPSEC Server UP	The IPSEC service is enabled.
IPSEC Server DOWN	The IPSEC service is disabled.
CPE Kernel IPSec Error	A CPE kernel IPSec error occurred.
CPE Kernel Alert	A CPE kernel alert occurred.
RR Online	The route reflector has connected to the controller.
RR Offline	The route reflector has disconnected from the controller.
RR Registered	The route reflector was registered successfully.
RR Interface UP	The route reflector interface status changed to UP.
RR Interface DOWN	The route reflector interface status changed to DOWN.
RR BGP Neighbor UP	The route reflector BGP neighbor status changed to UP.
RR BGP Neighbor DOWN	The route reflector BGP neighbor status changed to DOWN.
RR BGPD CPU	Route reflector BGPD CPU usage is abnormal.
RR Upgrade Success	The route reflector upgrade succeeded.
RR Upgrade Failed	The route reflector upgrade failed.
RR Agent UP	The route reflector agent is running.
RR Agent DOWN	The route reflector agent is unavailable.
RR System Restart	The route reflector system restarted.
RR BGPD FD Recovered	Route reflector BGPD file descriptor usage has recovered.
RR BGPD FD Exceeded Threshold	Route reflector BGPD file descriptor usage exceeded the threshold.
SWG Agent Online	The SWG agent has connected to the controller.
SWG Agent Offline	The SWG agent has disconnected from the controller.
SWG Agent Interface UP	The SWG agent interface status changed to UP.
SWG Agent Interface DOWN	The SWG agent interface status changed to DOWN.
SWG Agent Registered	The SWG agent was registered successfully.
SWG Agent Upgrade Success	The SWG agent upgrade succeeded.
SWG Agent Upgrade Failed	The SWG agent upgrade failed.
SWG Agent Agent UP	The SWG agent process is running.
SWG Agent Agent DOWN	The SWG agent process is unavailable.
SWG Agent System Restart	The SWG agent system restarted.
SMAC License Alarm	An SMAC license alarm was generated.
Default Event	A default event was generated.
Shared WAN Role Changed	The shared WAN role changed.
Shared WAN Split Brain Occurrence	Shared WAN split-brain occurred.
Shared WAN Split Brain Recovered	Shared WAN split-brain status has recovered.
Device Disk Status Error	The device disk status is abnormal.
Device Disk Status Ok	The device disk status has recovered.
Swg Forward Plane Down	The SWG forwarding plane is abnormal.
Swg Forward Plane Restored	The SWG forwarding plane has recovered.
