Security Service hit statistics

info

• Function: Query/clear the hit number of a certain rule of the Security Service
• Security services include: security policy, address blacklist, address whitelist, domain name blacklist, domain name whitelist, and batch black IP blocking
• Supported by device version 6.4.0 and above

Query/clear the cumulative hit count of security services

info

• Interface entry: Diagnosis, Security Instance Diagnosis

Hit count query

tip

• In this example, to query the number of hits, use the diagnostic interface

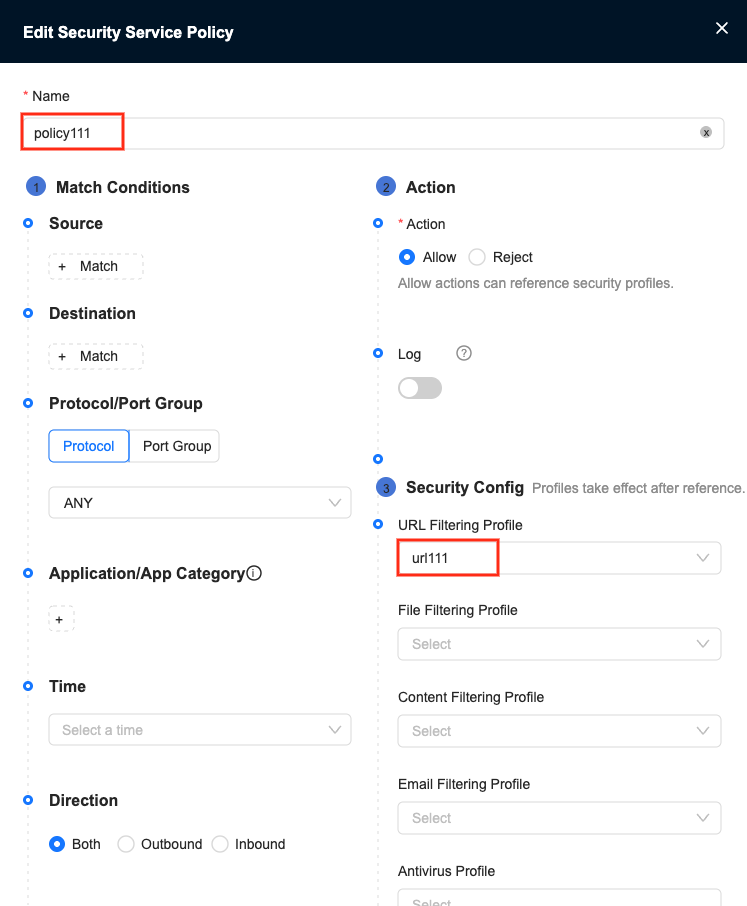

1. Site configuration security policy: policy111, url filtering configuration referenced in the security policy: url111

Security Policy

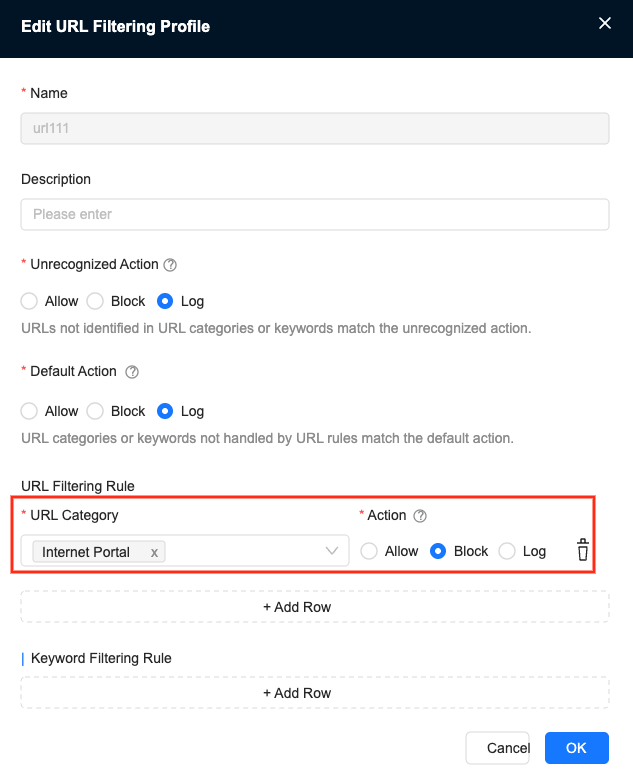

2.url filtering configuration: url category: Internet portal, behavior: blocking

url filtering configuration

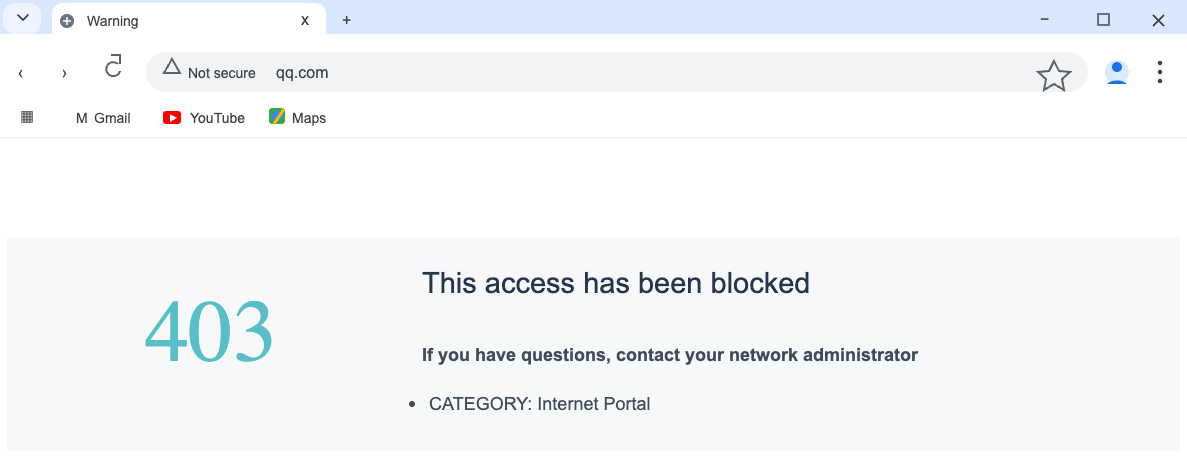

3. Trigger security policy hit:

Under the host of the site, access qq.com (qq.com belongs to the URL category: Internet portal), and hits the URL filtering configuration under the security policy, so the access is blocked.

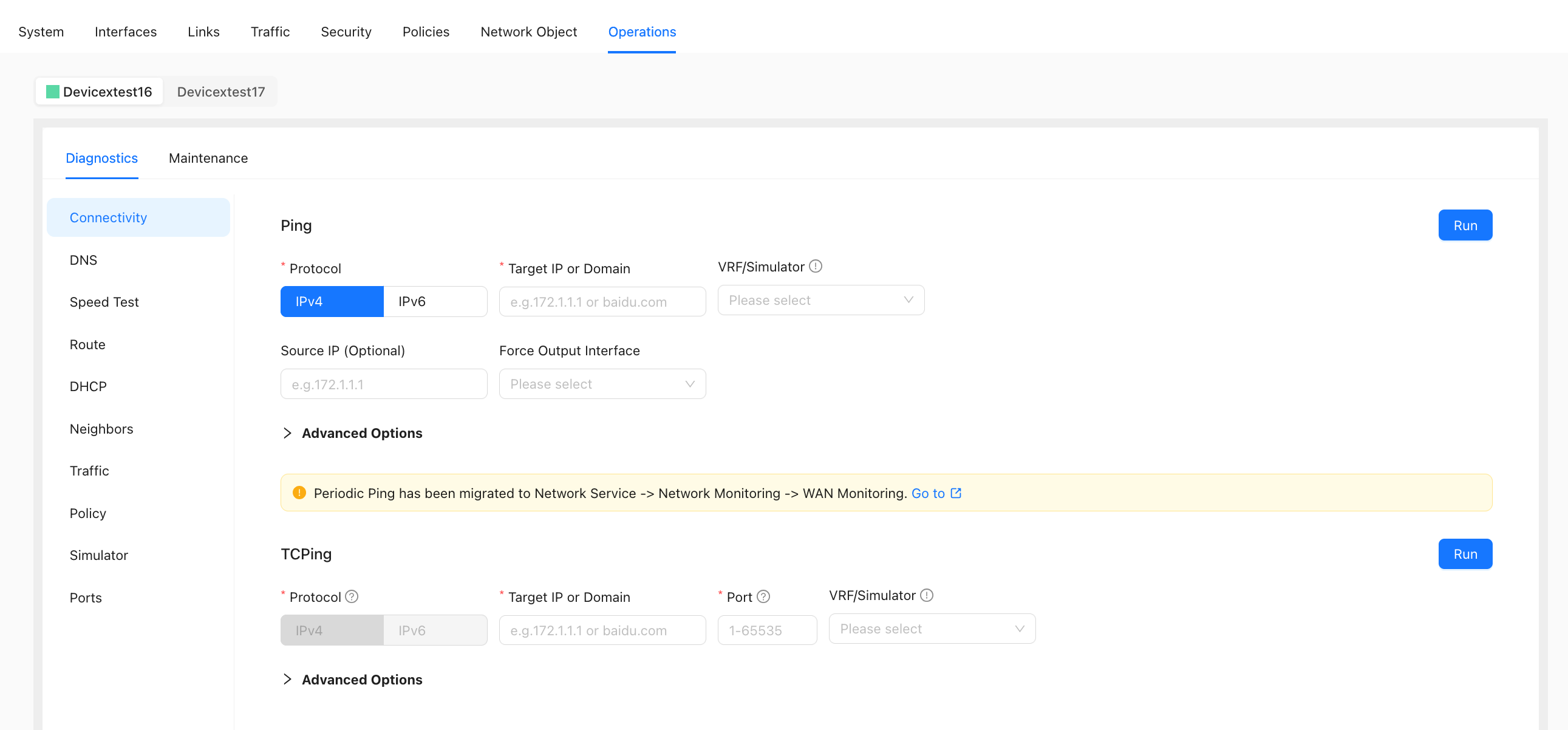

4. Enter: Monitoring-Site Details-Operation and Maintenance-Diagnosis

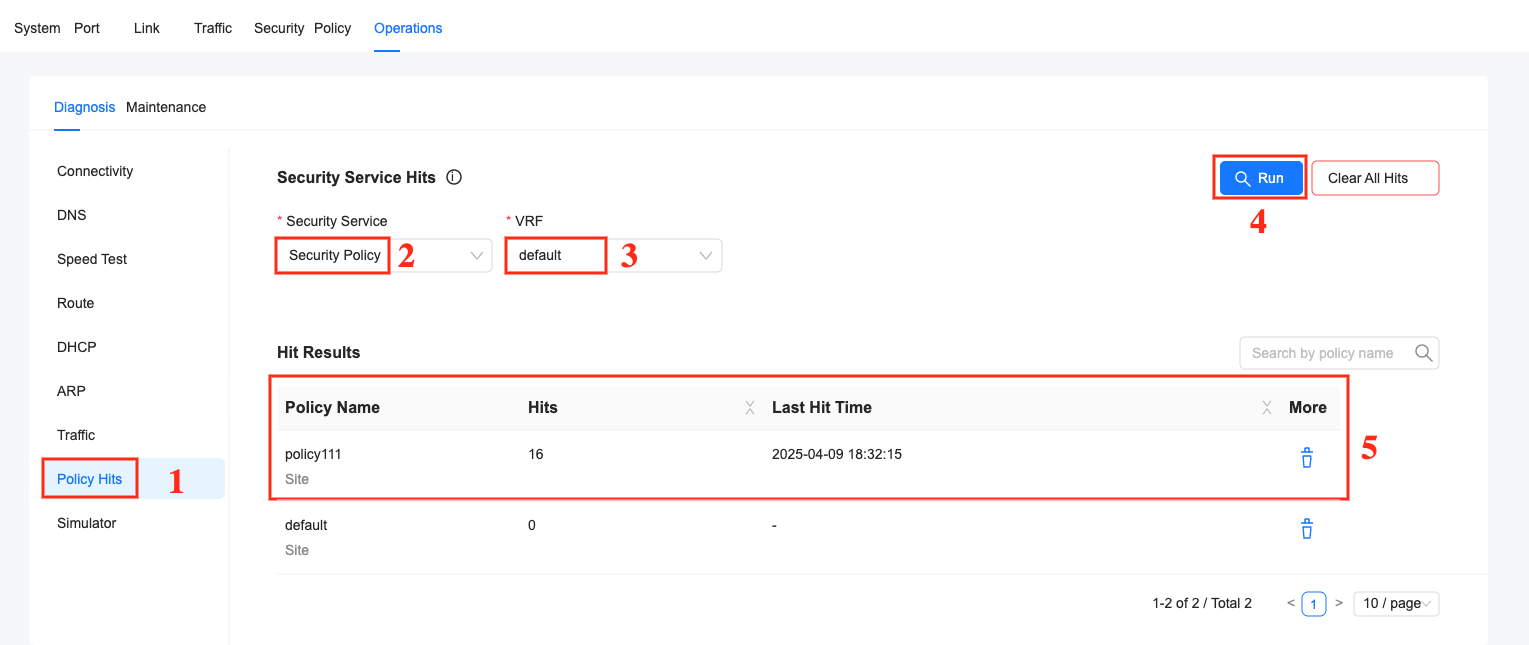

5. Policy Hit Count - Security Service Hit Count area, "Security Service" selection: Security Policy, select the corresponding VRF, and then click "Run"

Security policy: "policy111" hit count can be queried

Clear the specified number of hits

tip

• In this example, the number of hits is cleared and the safe instance diagnostic interface is used.

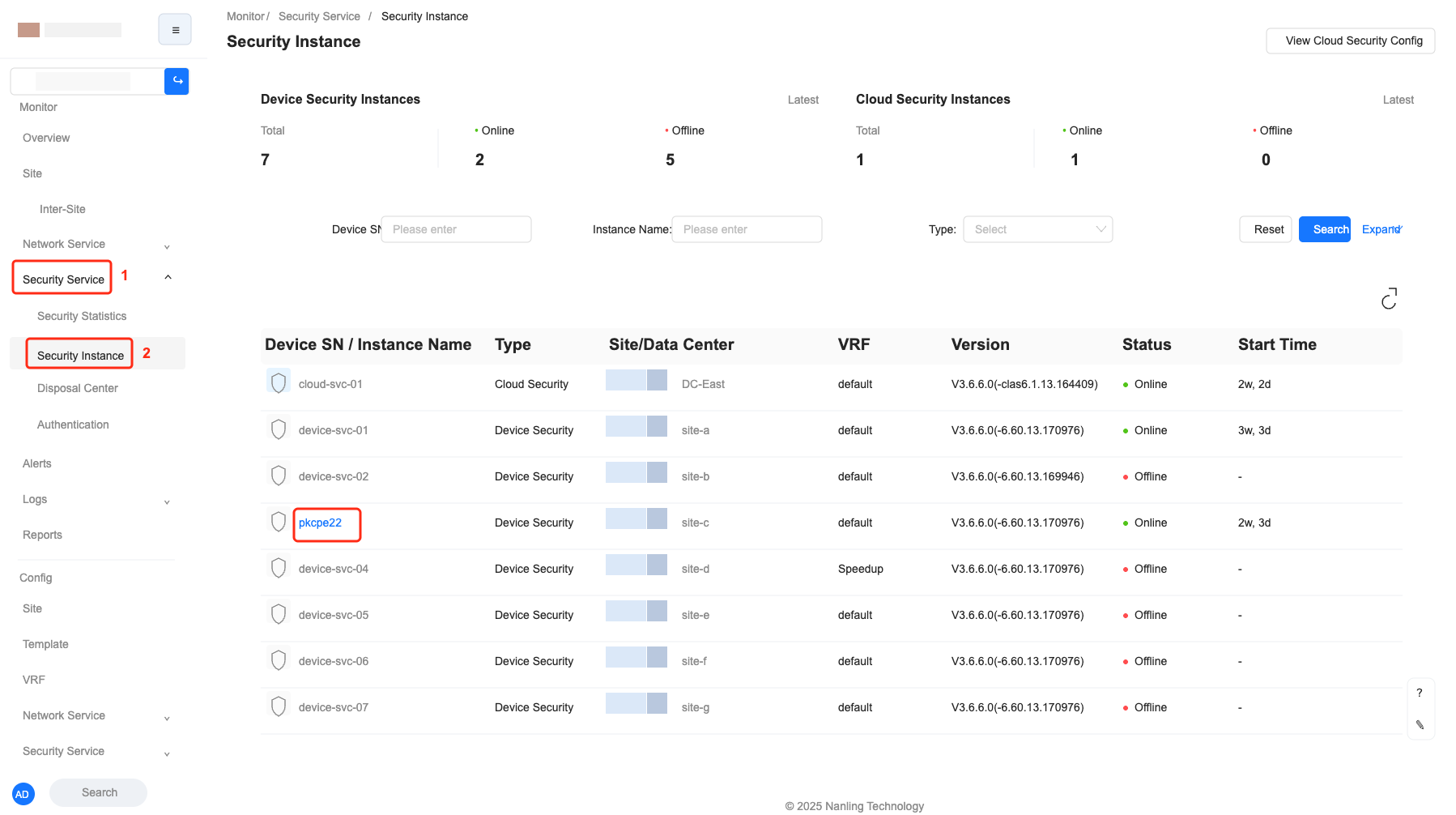

1. Enter: Monitoring-Security Service-Security Instance, click on the corresponding device sn to enter the security instance details interface

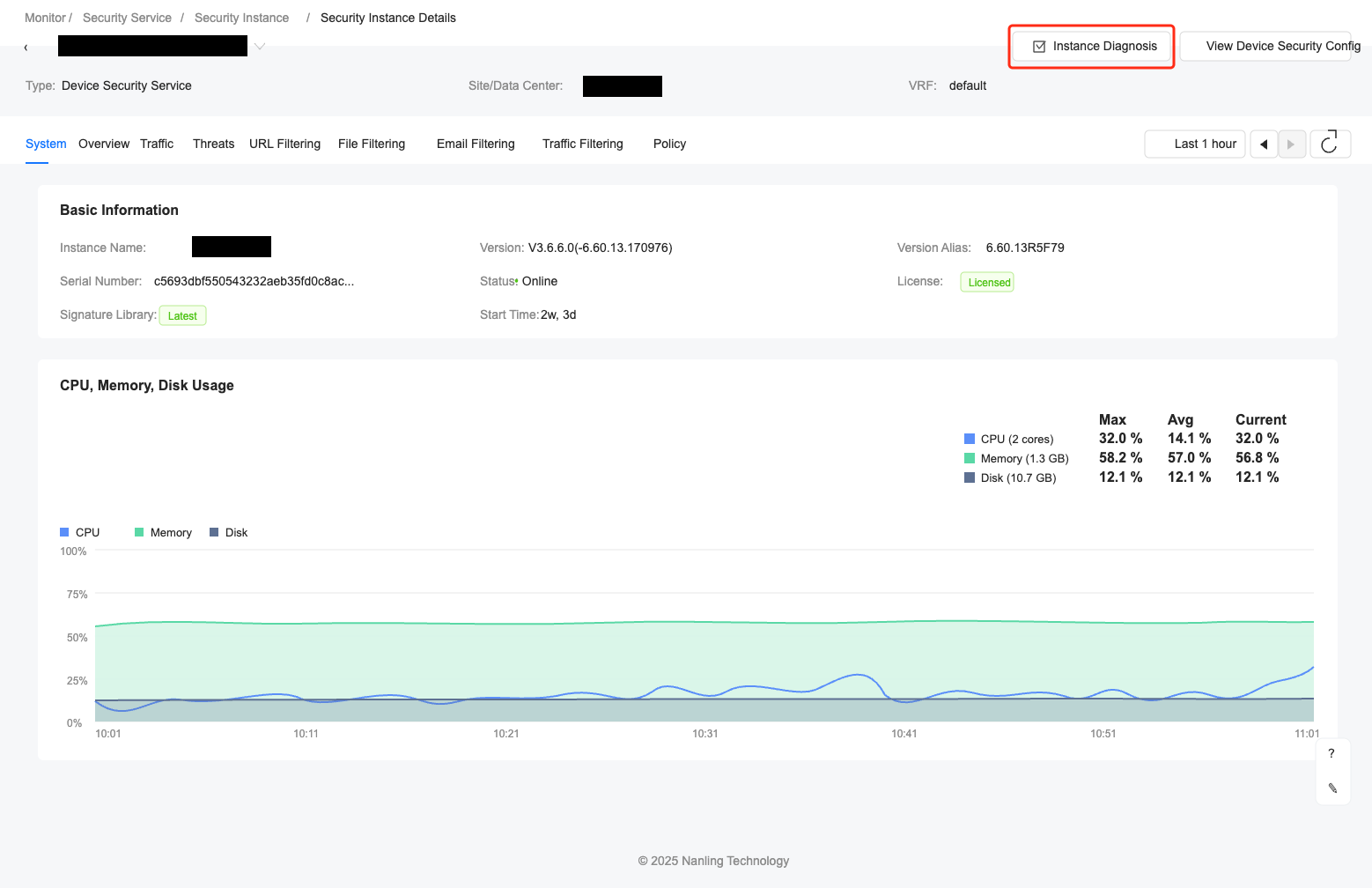

2. In the security instance details interface, click "Security Instance Diagnosis" to enter the security instance diagnosis interface.

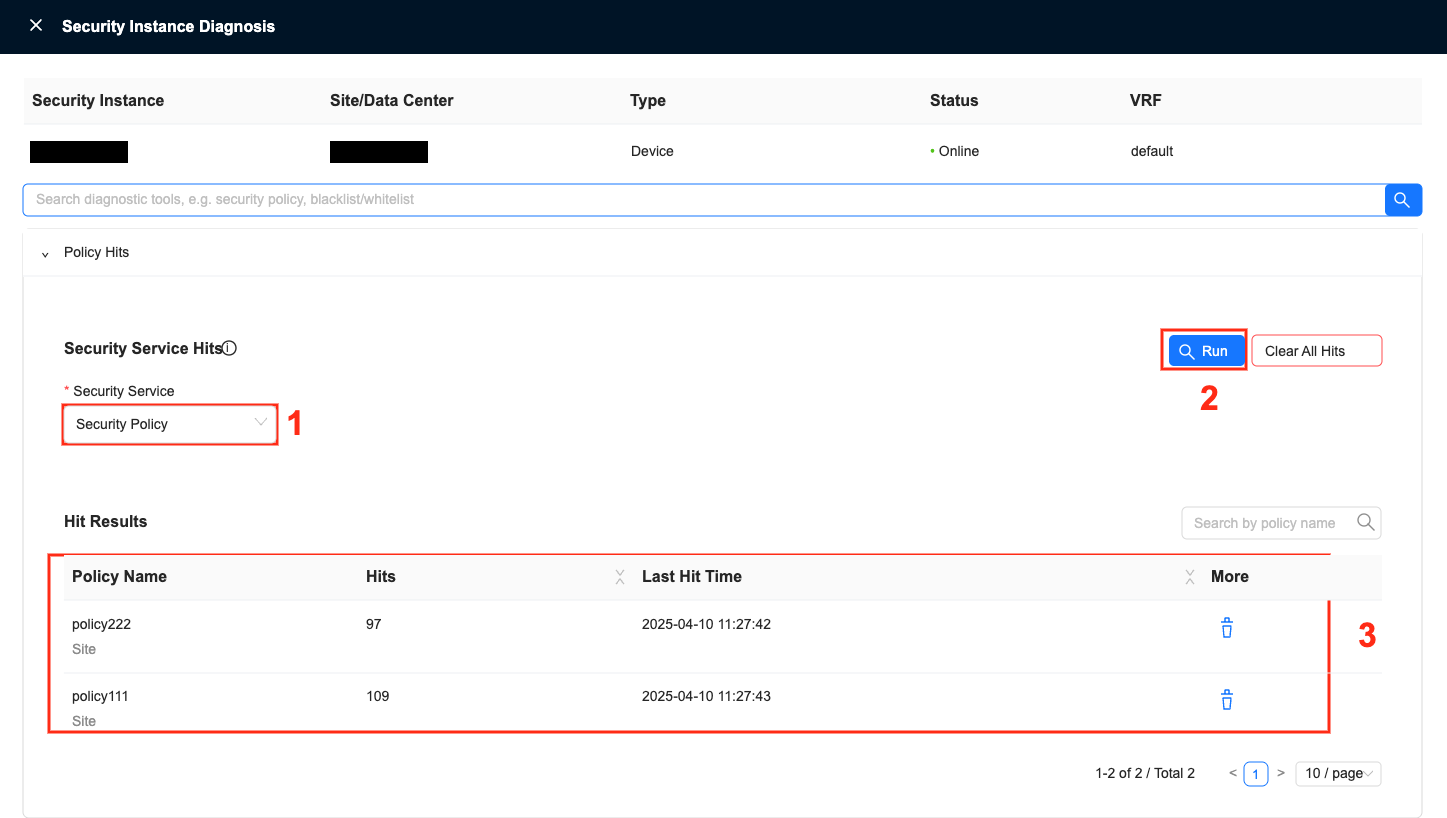

3. Policy Hit Count - Security Service Hit Count area, select "Security Service": Security Policy, and then click "Run"

The number of security policy hits can be queried

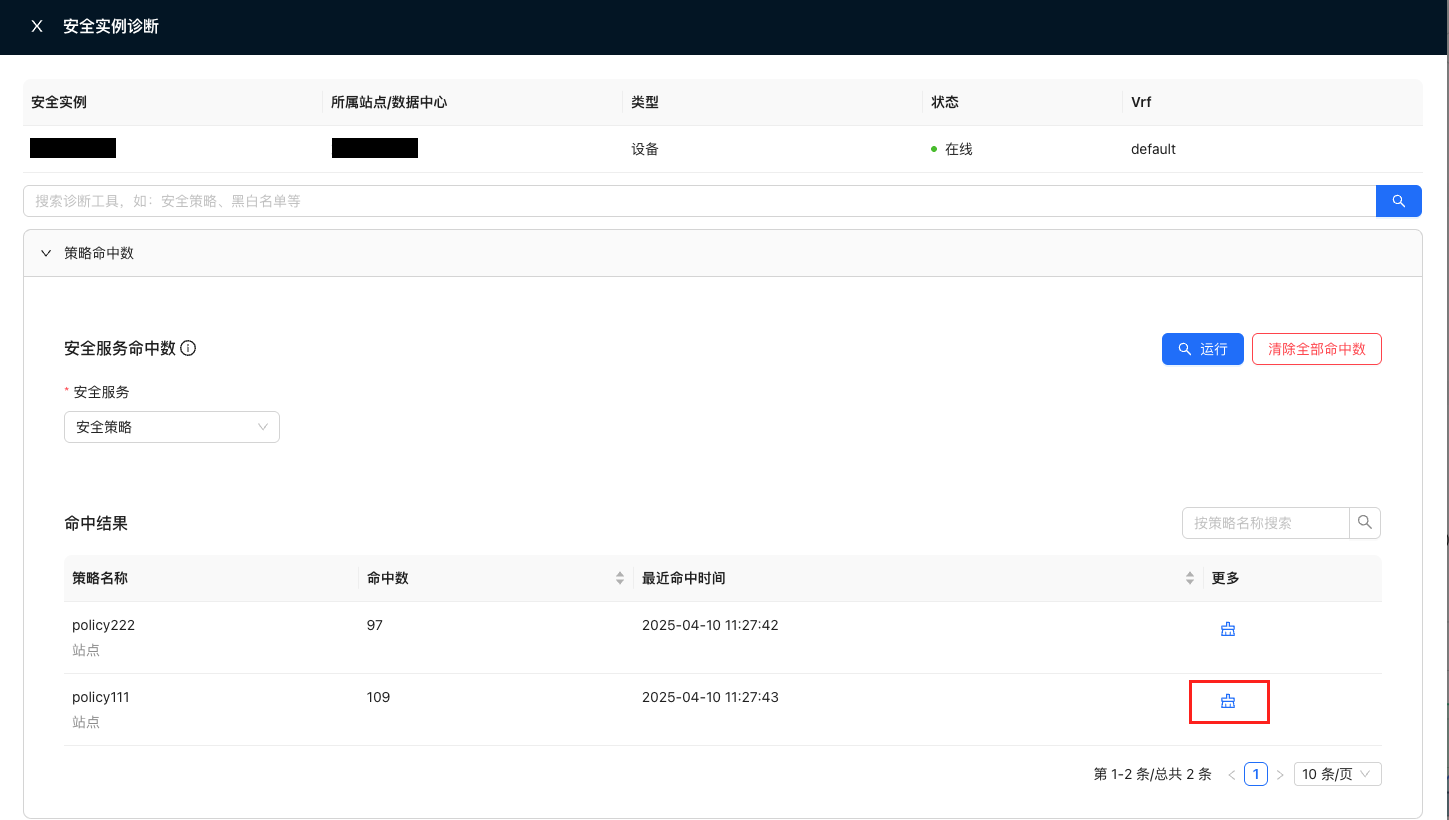

4. Policy: "policy111" row, click the clear button

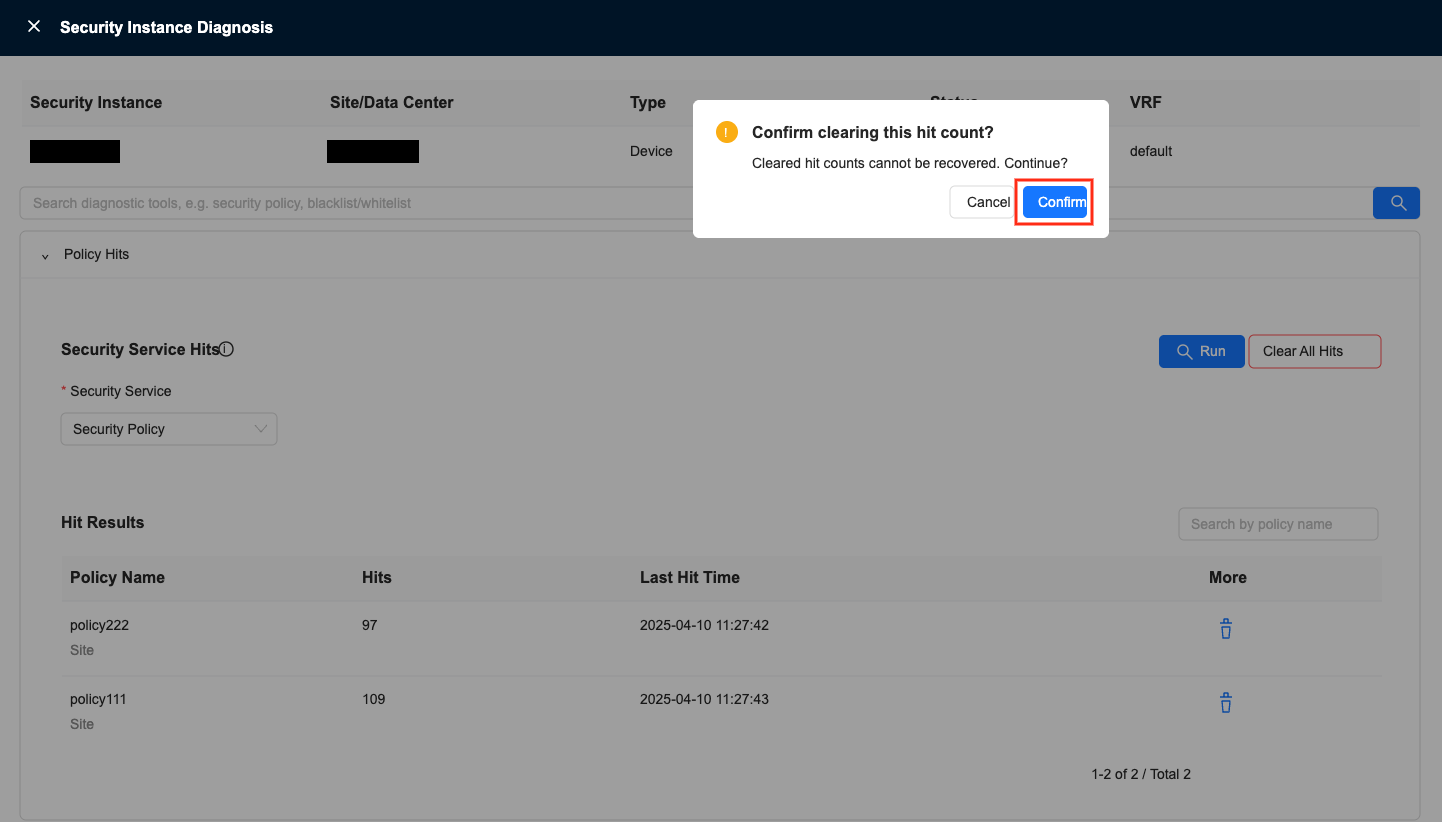

5. A dialog box pops up, click "Confirm"

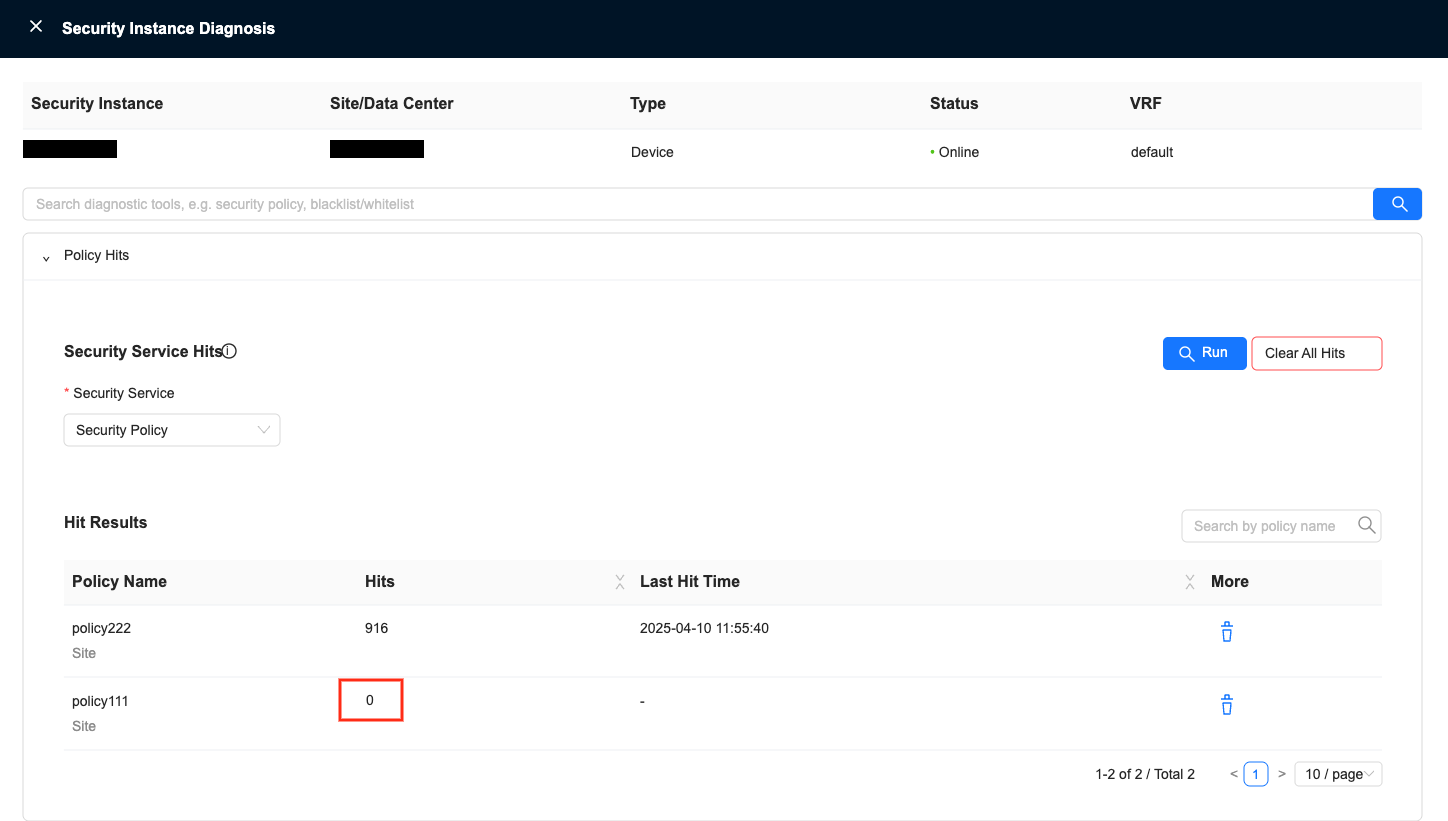

6. Policy: "policy111" hit count successfully cleared

Clear all hits

tip

• In this example, the number of hits is cleared and the safe instance diagnostic interface is used.

1. Enter: Monitoring-Security Service-Security Instance, click on the corresponding device sn to enter the security instance details interface

2. In the security instance details interface, click "Security Instance Diagnosis" to enter the security instance diagnosis interface.

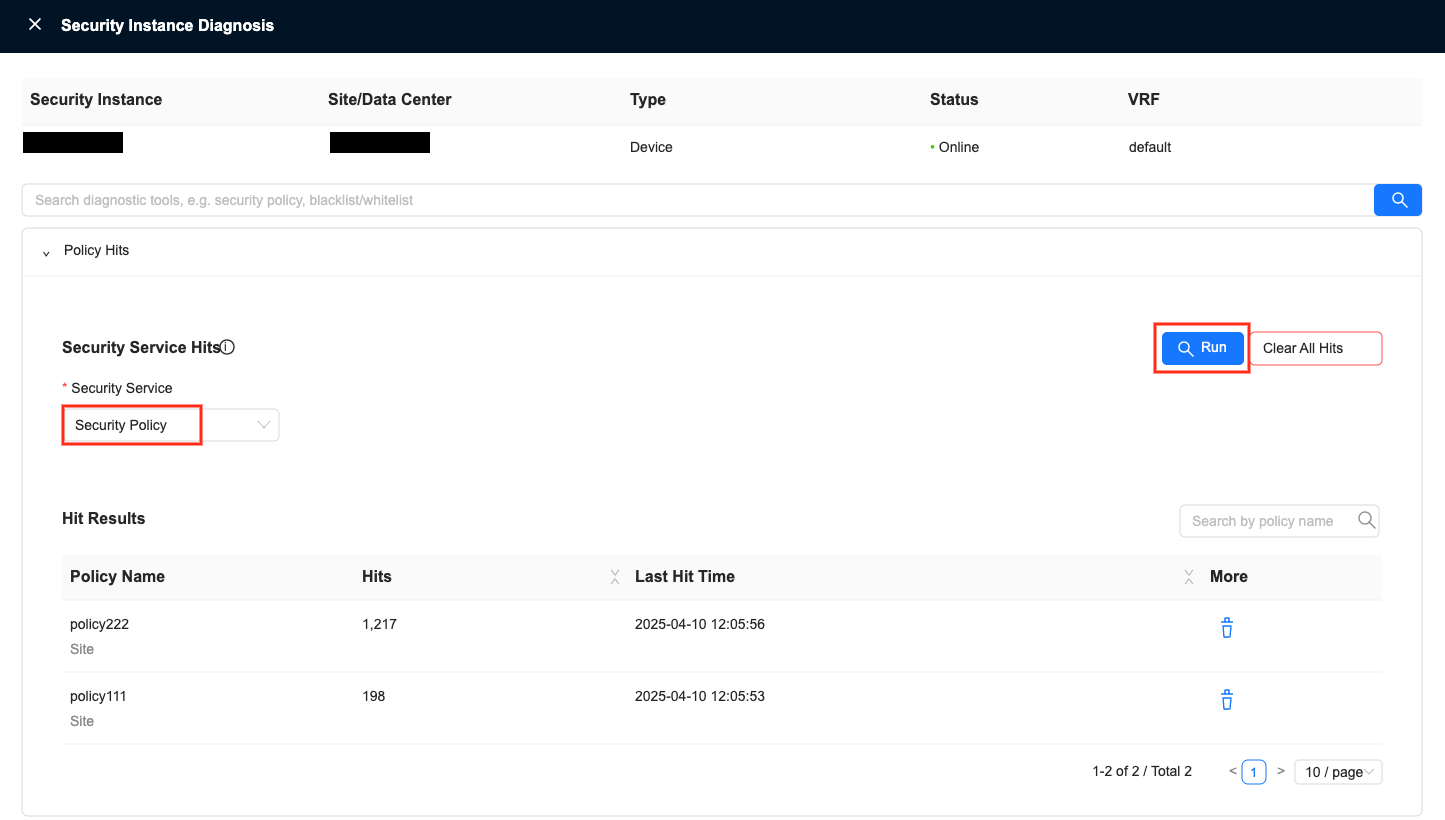

3. Policy Hit Count - Security Service Hit Count area, select "Security Service": Security Policy, and then click "Run"

The number of security policy hits can be queried

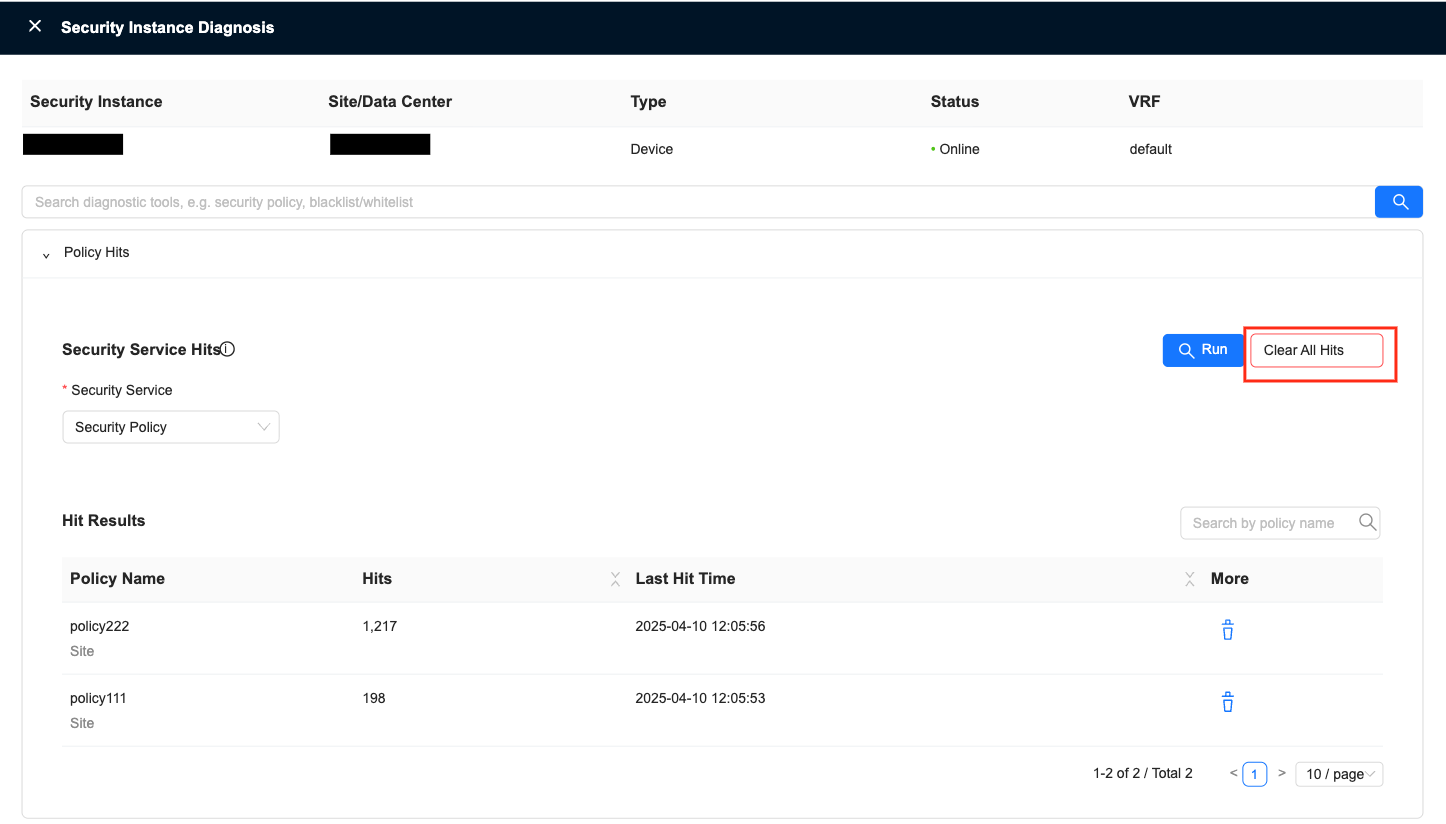

4. Click "Clear All Hits"

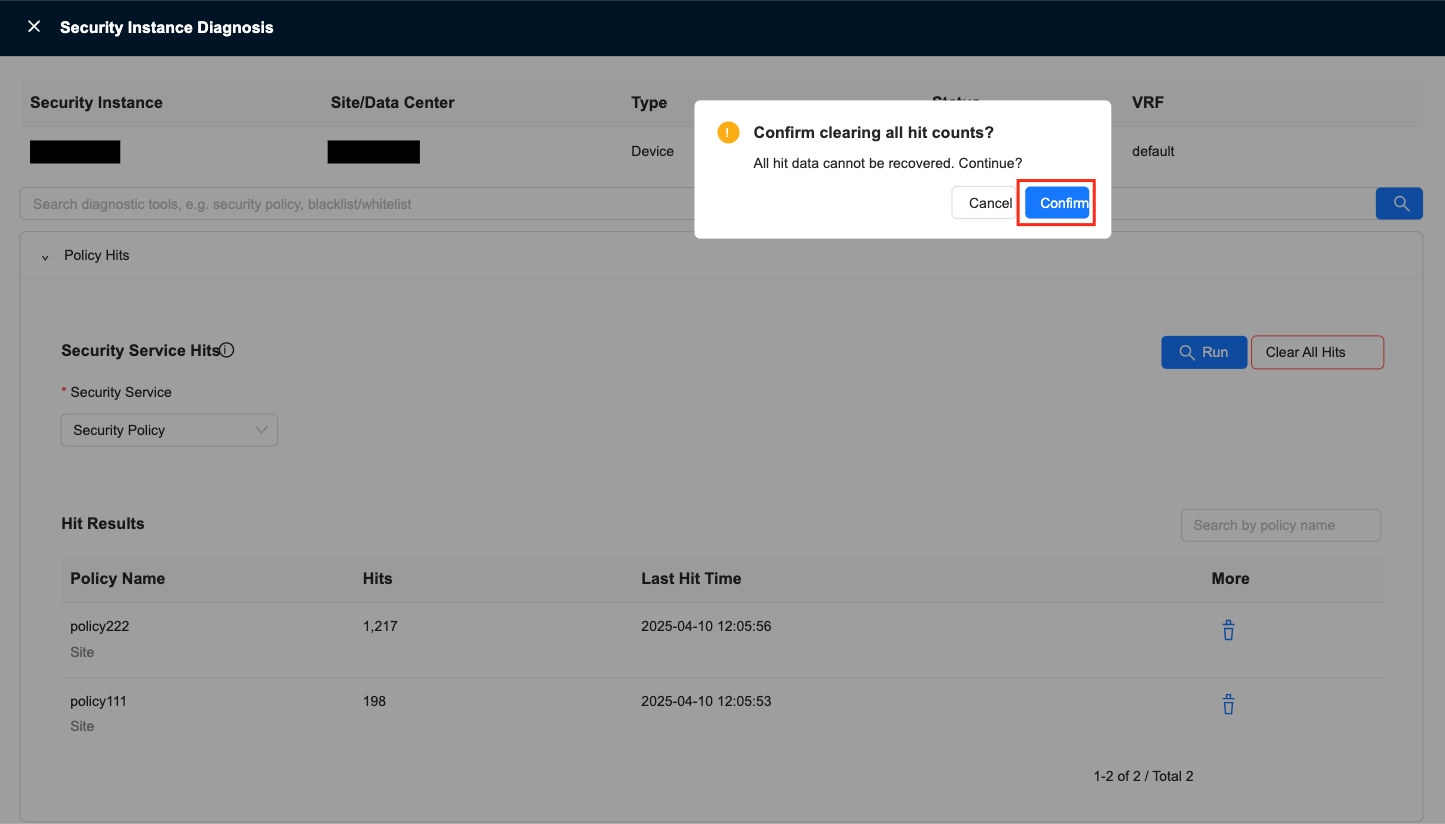

5. A dialog box pops up, click "Confirm"

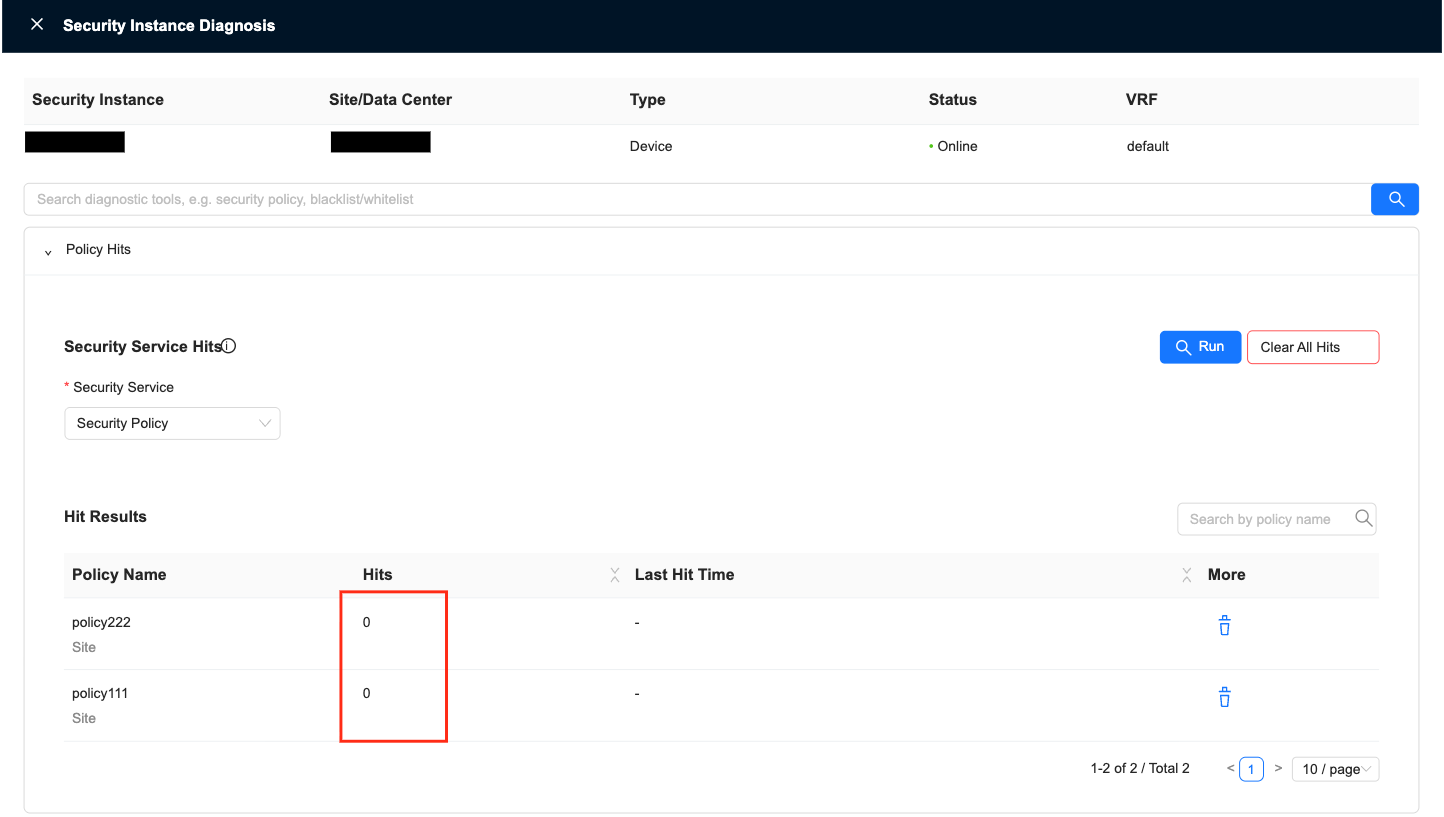

6. All strategy hits are cleared successfully

Query the historical hit count of security policy

info

• Interface entrance: Site details, Security instance details
• Function: View the number of hits of the security policy at each point in time within the time range
• Only supports security policy

Instructions for use

tip

• In this example the site details interface is used
• Pre-trigger security policy hits

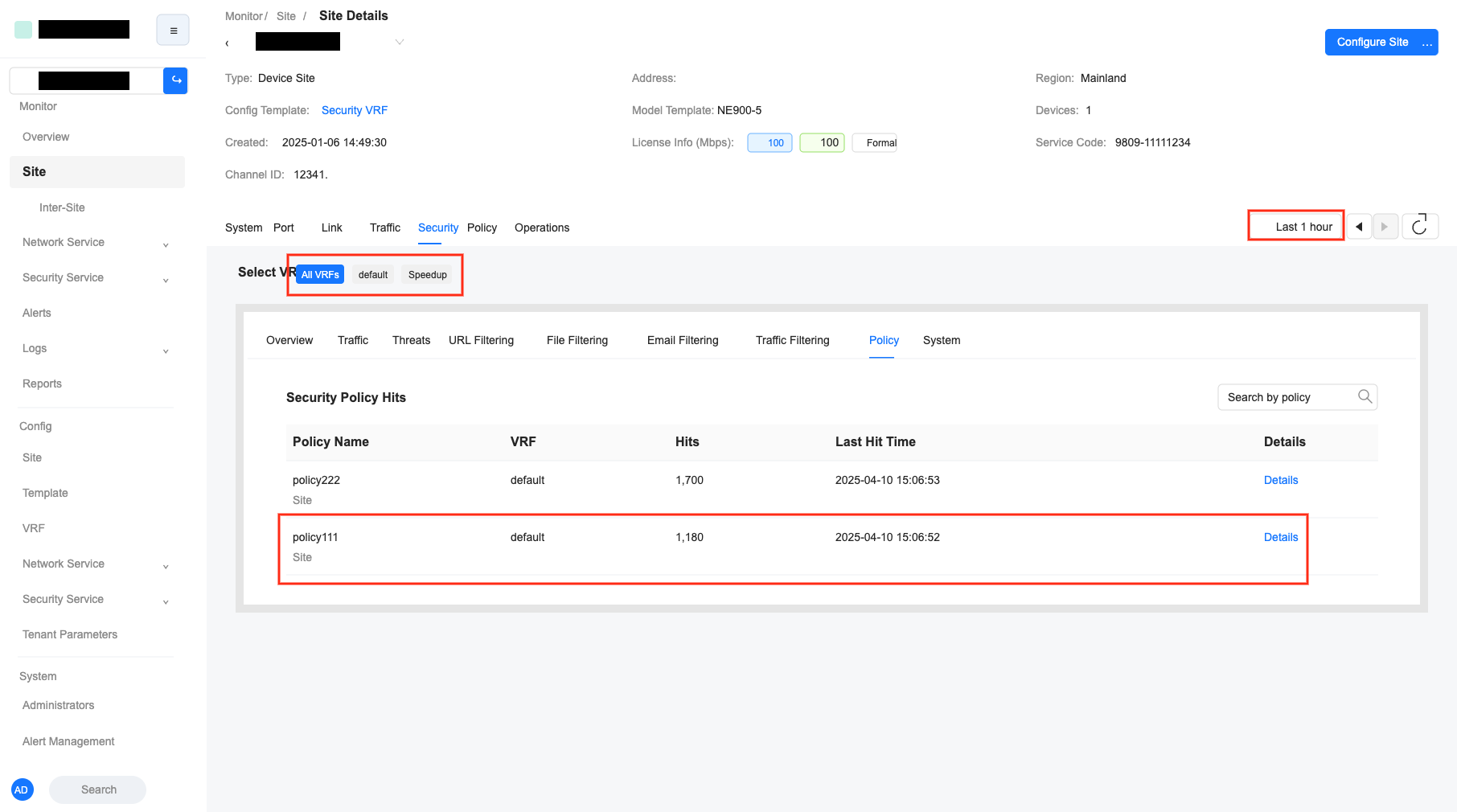

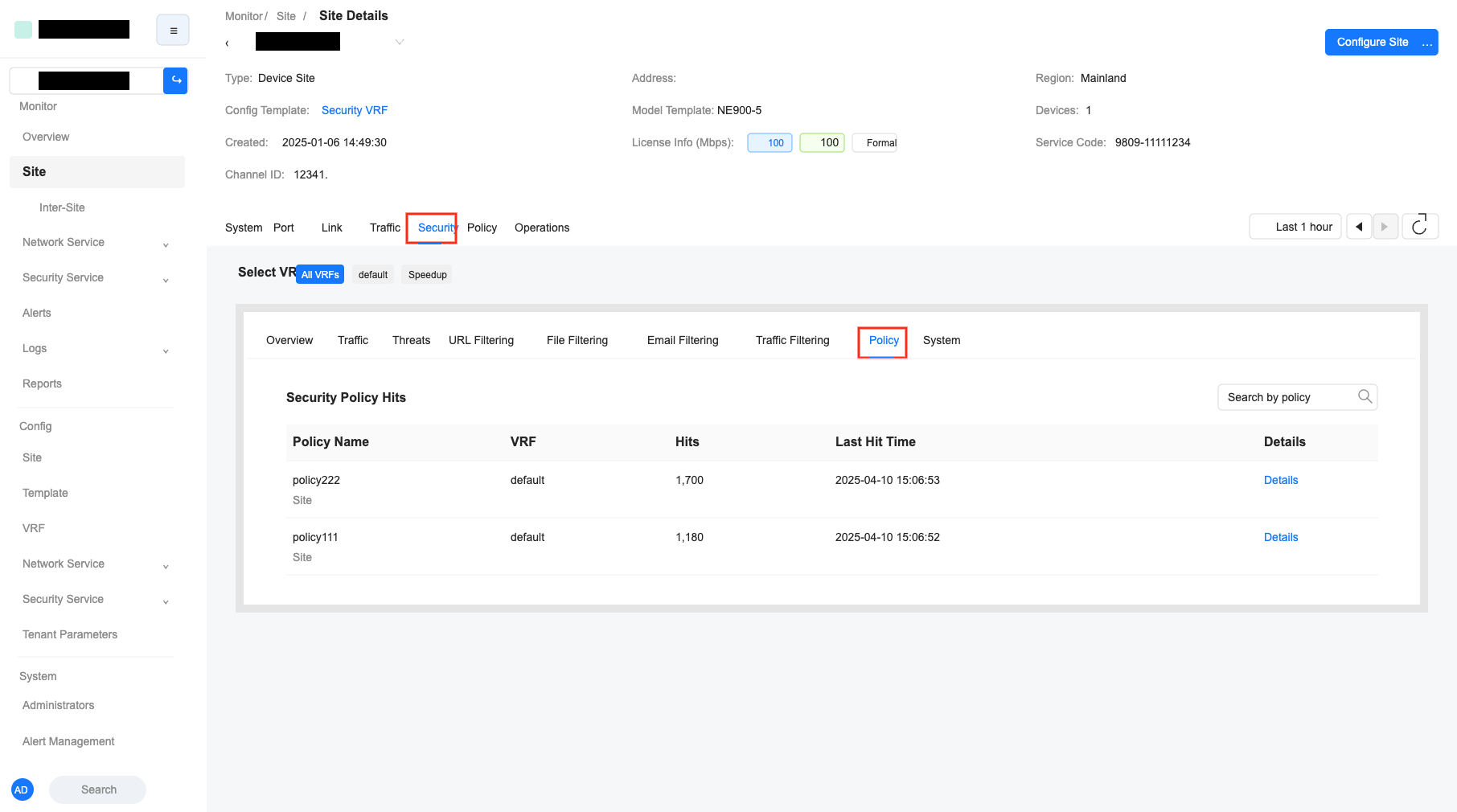

1. Enter: Site Details-Security-Policy, "Security Policy Hit Count" area

2. Select VRF and time range to view security policy hit statistics, such as: number of hits within the time range and last hit time

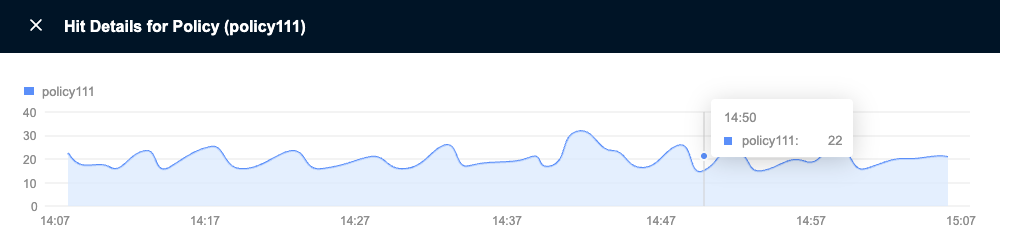

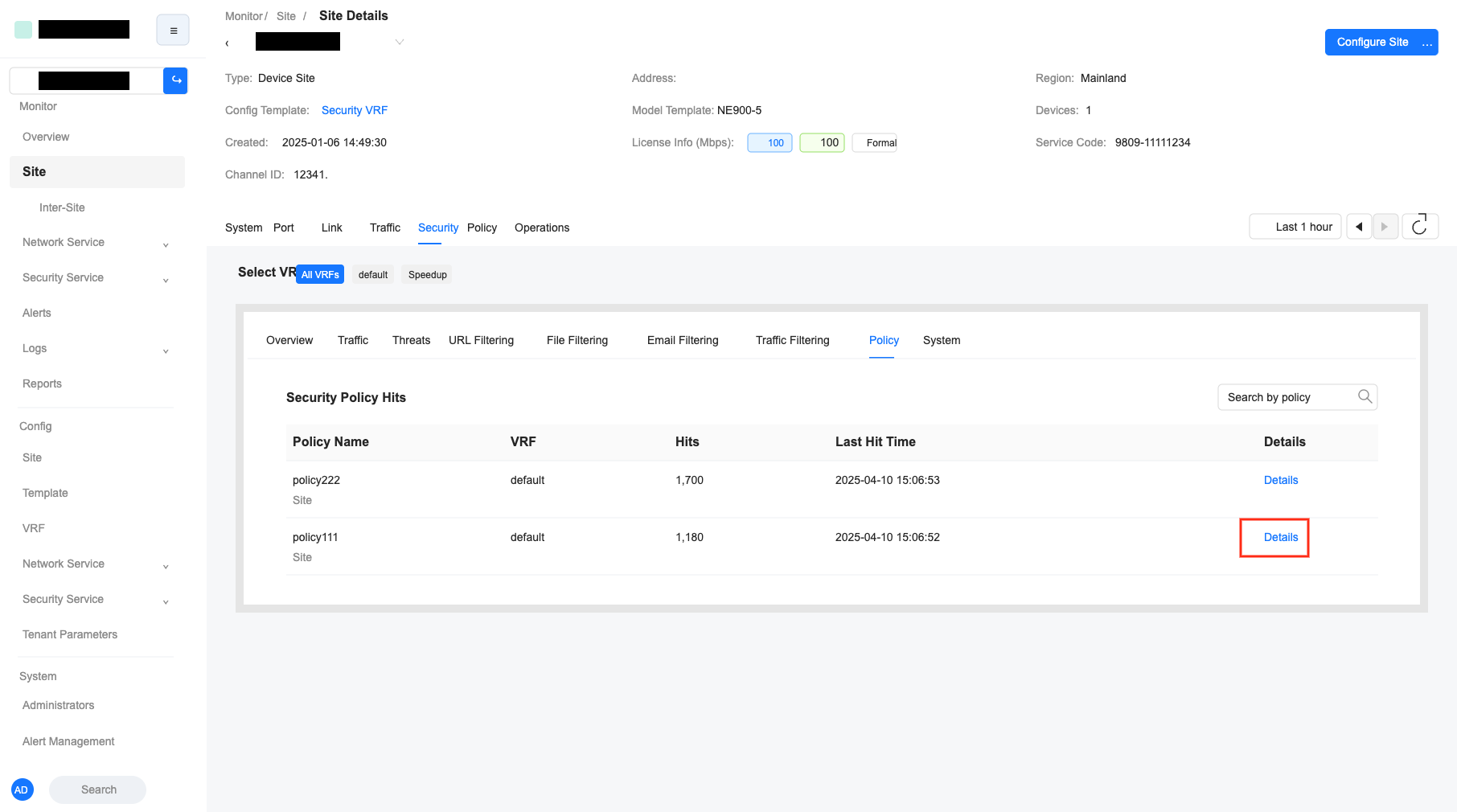

3. Click "Details" to view the security policy and the number of hits at each time point.
